Vacuum filter

Description of vacuum filter:

Vacuum filter is widely used for the starch dehydration in medicine, food, chemical engineering and other industries.

All the equipment made of high quality stainless steel, rotating drum speed can frequency control. Cleaning of the drum is using intermittent automatic flushing. Filter slot equipped with paddle stirrer to prevent starch deposition. And it is equipped with continuously adjustable level control. Vacuum filter has pneumatic controlled scraping blade discharging and the scraper is made of high hardness alloy.

DOING vacuum filter absorbs the domestic and foreign advanced technology, which characterized with stable running, compact structure, low energy consumption, cover small area, good work performance, high dewatering rate, no noise, convenient operation and maintenance, and is the ideal choice for large and medium-sized starch production enterprises.

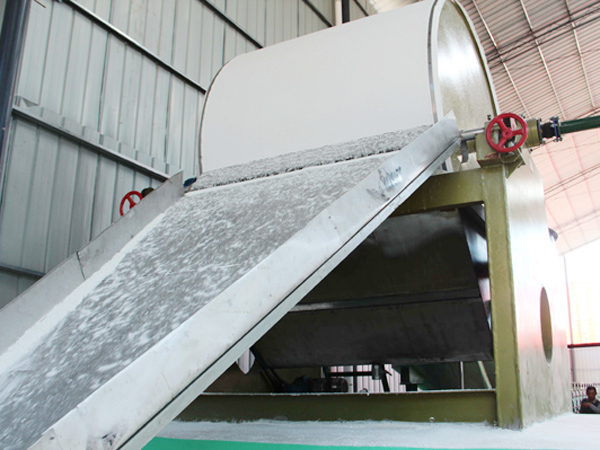

vacuum filterVacuum filter

Features of Vacuum filter:

Adopts pneumatic scraper, scrape layer uniform and stability

Filter tank is equipped with automatic agitator, prevent starch sank to the bottom

Starch dewatering effect is good, has realized automatic discharging, reduce the labor intensity

Working without noise, stable work, work good continuity, easy to operate.

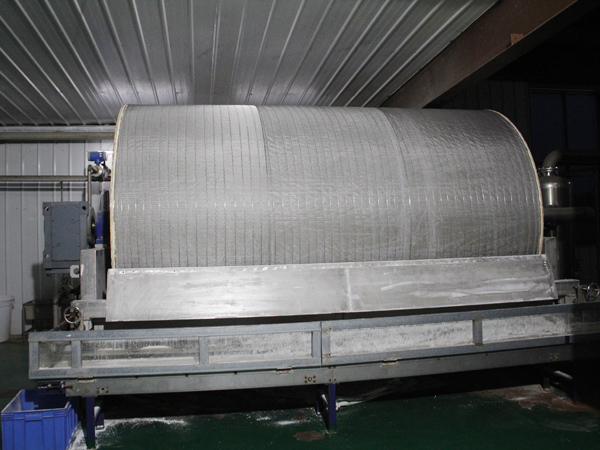

vacuum filterVacuum filter

Parameters of vacuum filter:

Model Output(kg/h) Power(kw) Outersize(mm)
ZZG3 400 6.6 1600×1650×2200
ZZG4 650 8.1 2000×1600×2200
ZZG15 2000 21.5 4000×1600×2200
ZZG20 4000 21.5 4000×2450×3100


Application of vacuum filter

1.Sweet potato / potato / cassava starch filtering dehydration

2.Corn protein filtering dehydration

3.Wheat starch filtering dehydration

4.Chemical industries


DOING company offers cassava processing machine from single machine to the complete production line. If you want to get more details about cassava processing machine, please contact us:
